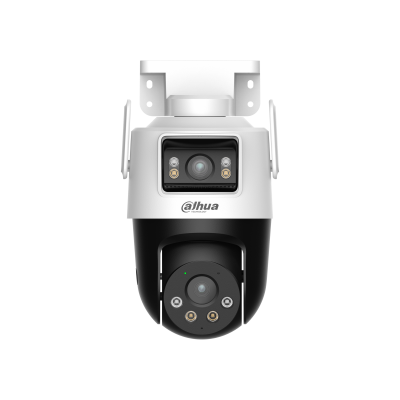

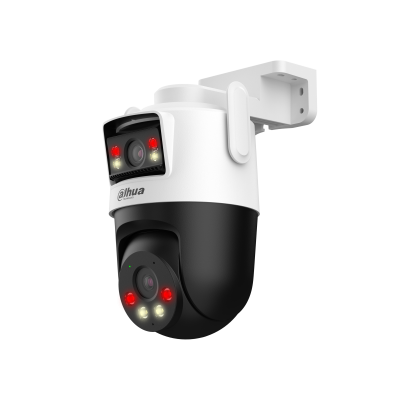

Dahua Dual-Lens Smart Wi-Fi Camera with Human & Vehicle Detection (3MP)

Ensure complete peace of mind with this advanced Dahua Dual-Lens Smart Wi-Fi Camera, offering intelligent surveillance, crystal-clear 3MP resolution, and powerful deterrent features in a durable, weather-resistant design. Equipped with both fixed and PT lenses, this camera provides wide coverage and precision targeting—ideal for homes, offices, and commercial spaces.

---

📷 Camera Overview

✅ Fixed Lens Camera

• Image Sensor: 1/2.8″ CMOS

• Resolution: 2304 (H) × 1296 (V)

• Focal Length: 2.8 mm | Max Aperture: F1.6

• Field of View: H: 95° | V: 53° | D: 110°

• Illumination Distance:

  • IR: Up to 30 m (98.43 ft)

  • Warm Light: Up to 20 m (65.62 ft)

• Illuminators: 2 IR + 2 Warm LED lights

• Angle Adjustment: -10° to 15°

✅ Pan-Tilt (PT) Lens Camera

• Image Sensor: 1/2.8″ CMOS

• Resolution: 2304 (H) × 1296 (V)

• Focal Length: 6 mm | Max Aperture: F1.6

• Field of View: H: 53° | V: 29° | D: 62°

• Pan/Tilt: Pan: 0° to 352° | Tilt: 0° to 90°

• Illumination Distance:

  • IR: Up to 50 m (164.04 ft)

  • Warm Light: Up to 40 m (131.23 ft)

• Illuminators: 2 IR + 2 Warm LED lights

---

🧠 Smart Intelligence Features

• Human Detection

• Vehicle Detection

• Motion Detection

• Built-in Siren & Light for Active Deterrence

---

🔊 Audio and Video

• Video Compression: H.265 for optimized storage

• Frame Rate:

  • Main stream: 2304 × 1296 @ 15 fps

  • Sub stream: 640 × 360 @ 15 fps

• Bit Rate: 512 kbps – 4096 kbps

• WDR: Digital Wide Dynamic Range (DWDR)

• Day/Night Modes: Auto(ICR), Color, B/W

• Audio:

  • Mic: Built-in microphone

  • Speaker: Built-in speaker

  • Compression: G.711a

---

🌐 Network & Connectivity

• Ethernet Port: RJ-45 (10/100 Base-T)

• Wi-Fi:

  • IEEE 802.11 b/g/n/ax

  • 2.4 GHz, up to 20 dBm power

  • Bluetooth pairing support

• Mobile Access: iOS & Android via DMSS App

• Browser Access: Via supported web browsers

---

💾 Storage & Software

• Local Storage: Micro SD card support up to 256 GB

• Software Support: DMSS for mobile; Smart PSS, NVR compatibility

---

⚙️ General Specifications

• Certifications: CE Certified

• Power Supply: 12 VDC

• Power Consumption:

  • Basic: 2.3 W

  • Max: 10 W (with deterrent features active)

• Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F)

• Humidity: ≤95% RH (non-condensing)

• Weatherproof Rating: IP66

• Material: Durable Plastic Housing

• Dimensions: 159.4 mm × 119.1 mm × 210 mm

• Weight: 585 g
